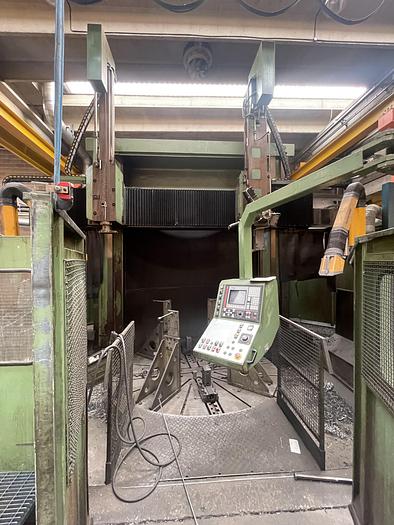

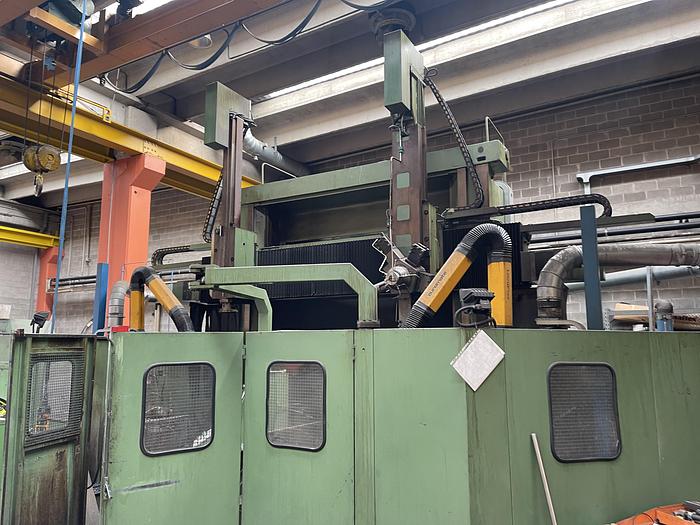

CNC Vertical Turning Lathe TITAN SC 33 CNC
CNC Vertical Turning Lathe TITAN SC 33 CNC
Italy
Description
Cnc Vertical Turning Lathe TITAN SC 33 CNC, Chuck size mm.3000, Max swing mm.3300, Height under traverse mm.3300 ,Cnc FAGOR with Electronic Handwheel, available for immediate delivery Subject to Prior Sale.
Specifications
| Manufacturer | TITAN |
| Model | SC 33 CNC |
| Year | 1998 |
| Condition | Installata |

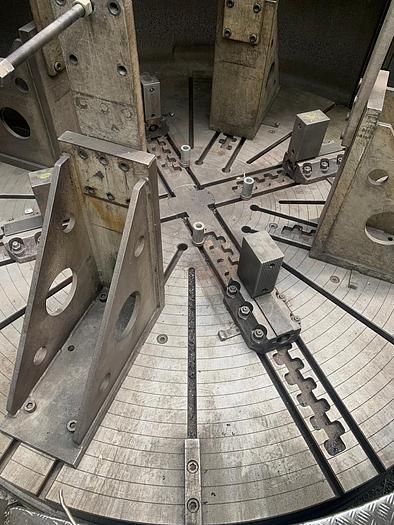

| Chuck size mm. | 3000 |
| Max swing mm. | 3300 |
| Height under traverse mm. | 3300 |
| Max workpiece weight | 18000 |

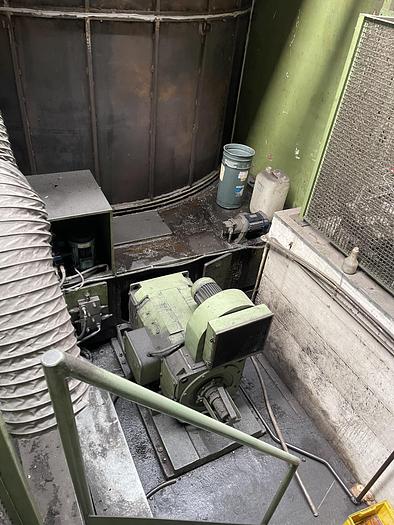

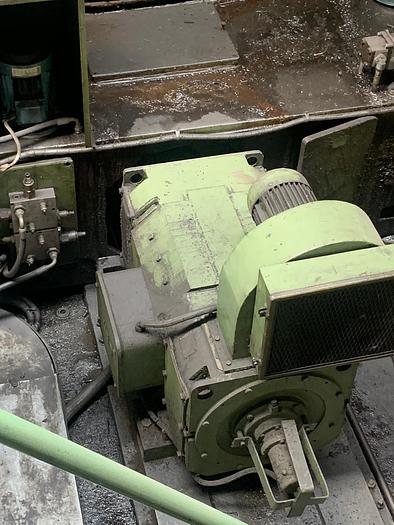

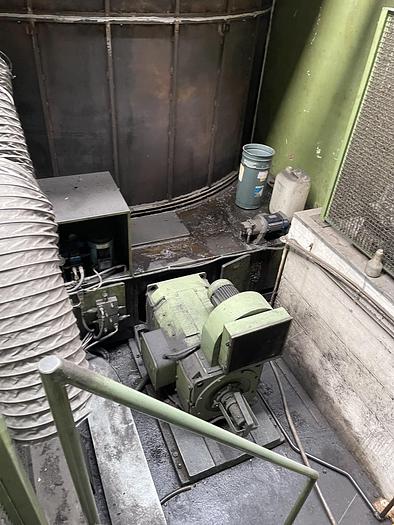

| Motor power Kw | 60 |
| Spindle speed rpm | 1,02 to 92 |
| Traverse vertical stroke mm. | 2800 |
| Right support stroke on traverse mm. | 1650 |
| Left support stroke on traverse mm. | 1650 |

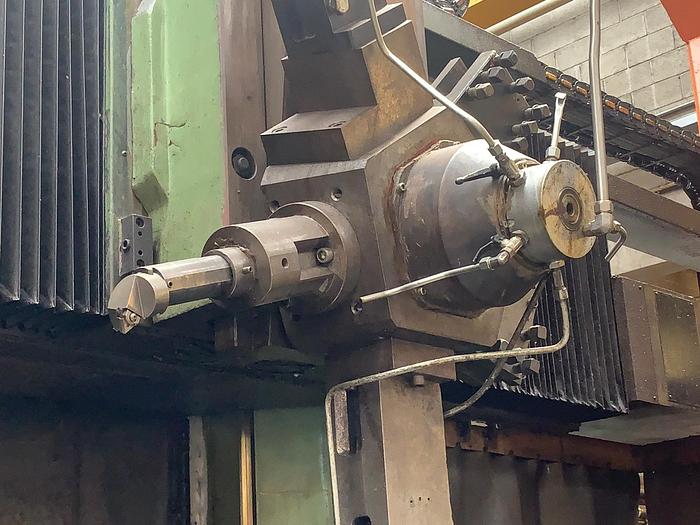

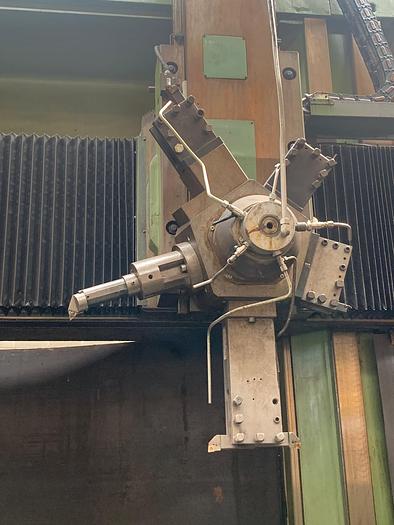

| Right support turret | Automatic 5 positions |
| Left support turret | 1 position |

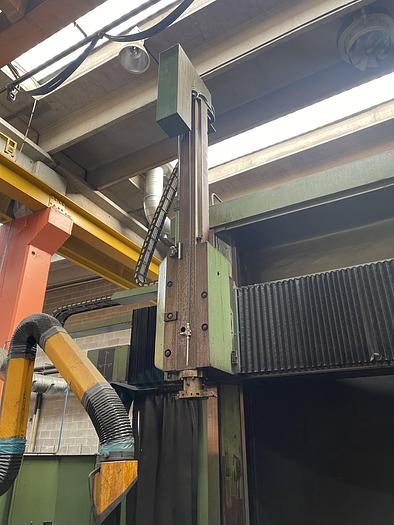

| Right support Ram stroke mm. | 1000 |
| Left support Ram strokme mm. | 1500 |

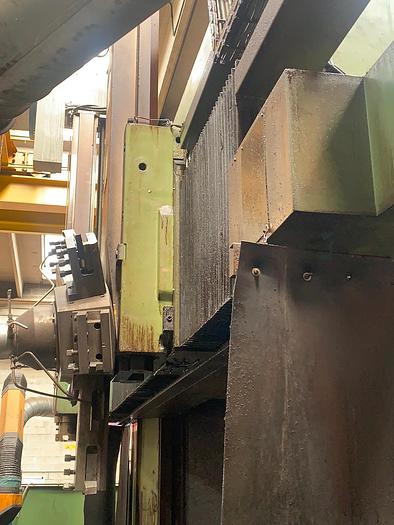

| Ram section mm. | 230 x 236 |
| Machine dimensions mm. | 5600 x 5300 x 6400 |
| Machine weight kg | 47350 |

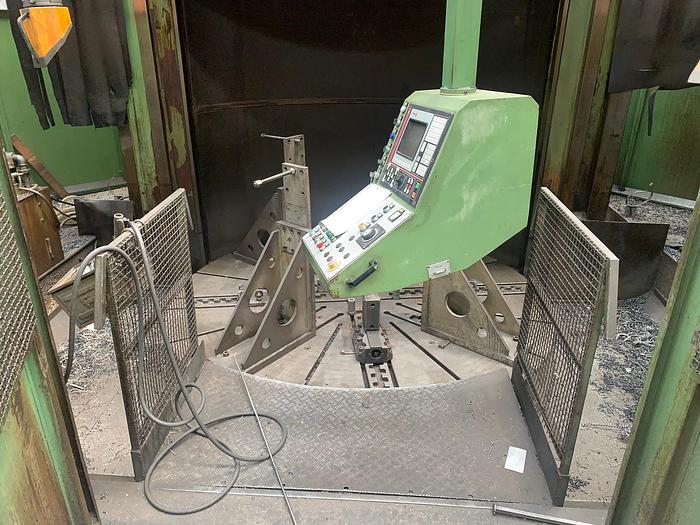

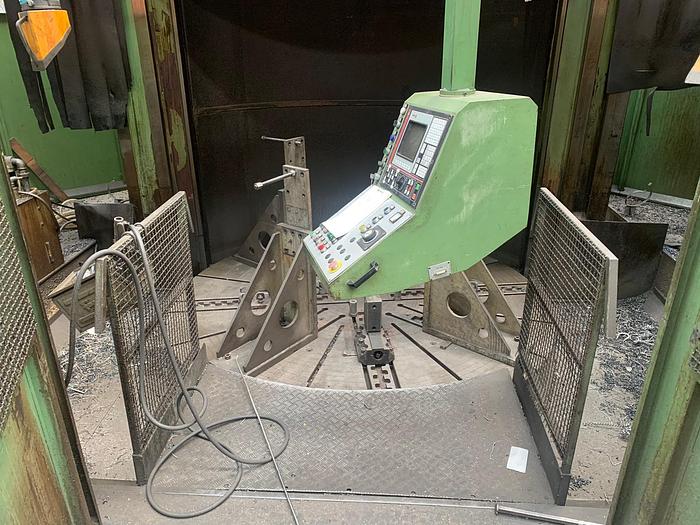

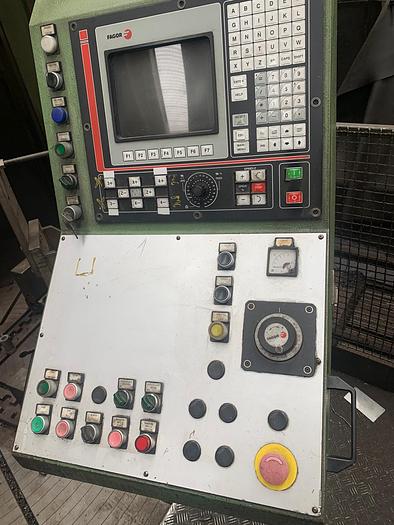

| Cnc | FAGOR with Electronic Hendwheel |

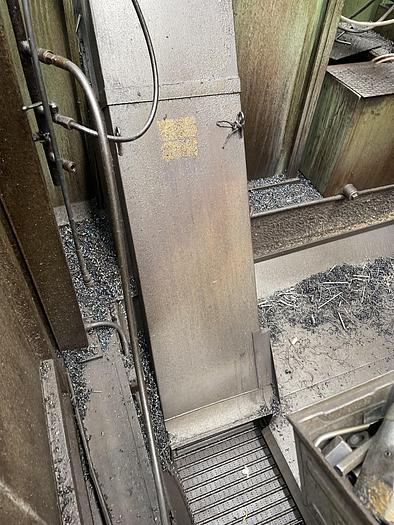

| Conveyor | Yes |
| CE | Yes |
