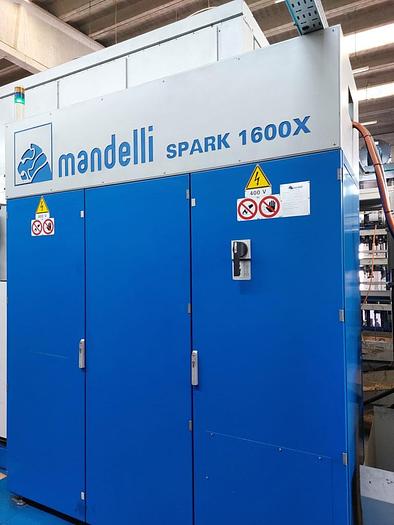

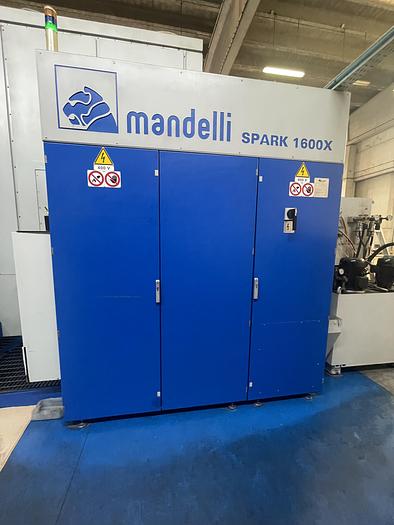

5 Axis Machining Center MANDELLI SPARK 1600X
Sold
5 Axis Machining Center MANDELLI SPARK 1600X
Location:Italy
Description

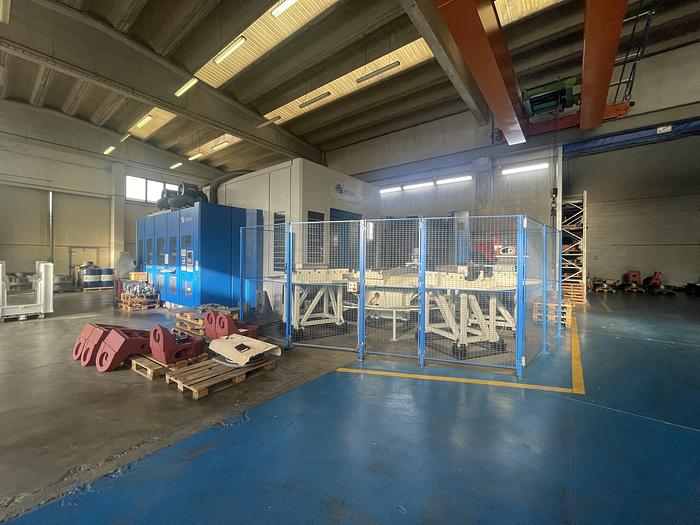

5 axis Vertical Machining Center MANDELLI SPARK 1600AT, Cnc SIEMENS 840D SL, available from site Subject to Prior Sale.
Specifications
| Manufacturer | MANDELLI |
| Model | SPARK 1600X |
| Year | 2008 |
| Condition | Installata |
| Pallet size mm. | 800 x 800 |

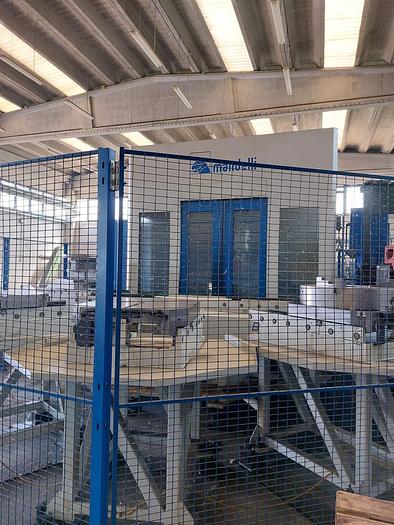

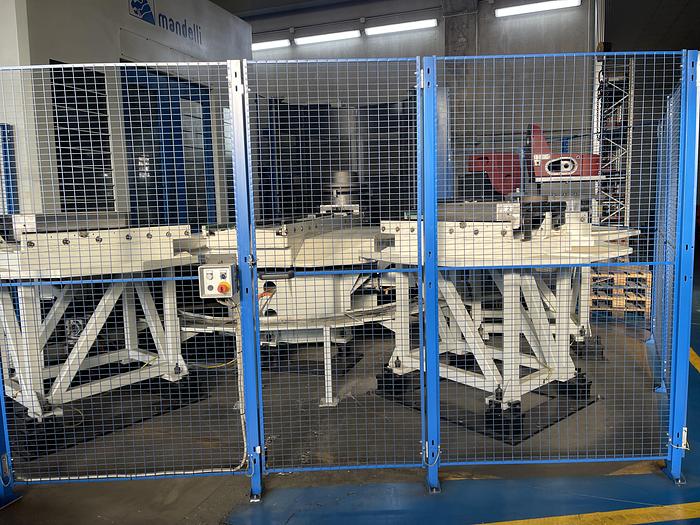

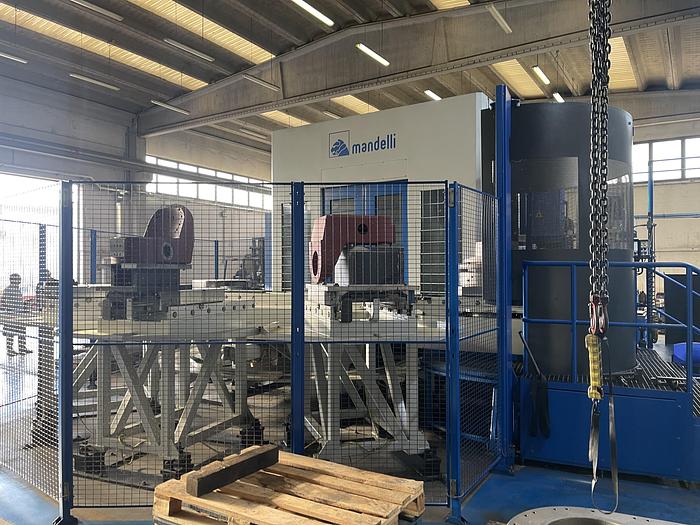

| Pallet changer positions | 6 |
| Table load Kg | 2500 |
| Stroke X mm. | 1600 |
| Stroke Y mm. | 1400 |
| Stroke Z mm. | 1400 |
| B axis rotary table | Infinitely variable for turning operations |

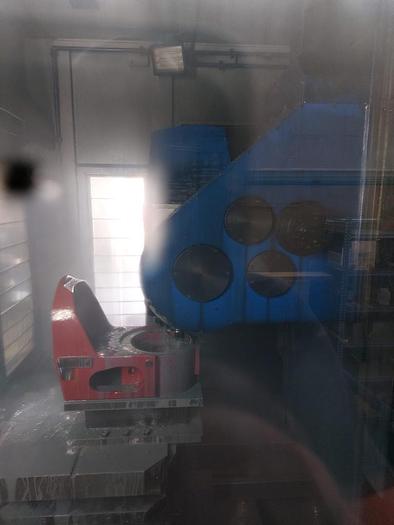

| Head type | Tilting head AT-87000 HSK 100 infinitely variable |
| Spindle speed rpm | 8000 |
| Spindle power Kw | 50 |

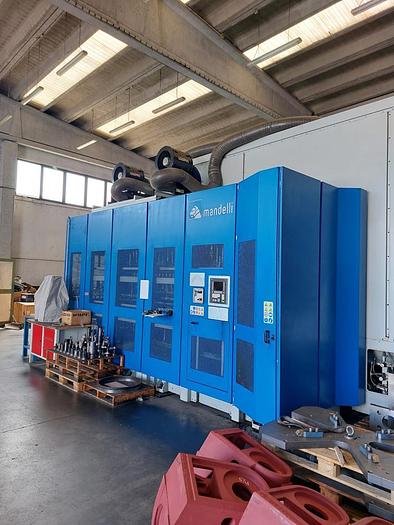

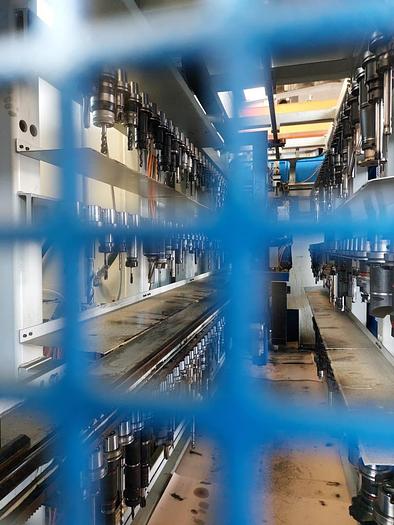

| Tool changer positions | 200 |
| Tool attachment | HSK 100 |

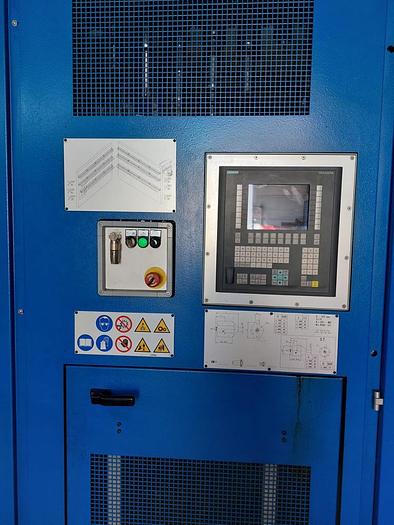

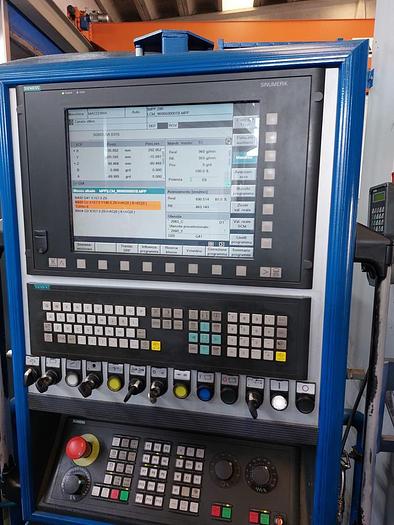

| Cnc | SIEMENS 840D |
| CE | Yes |

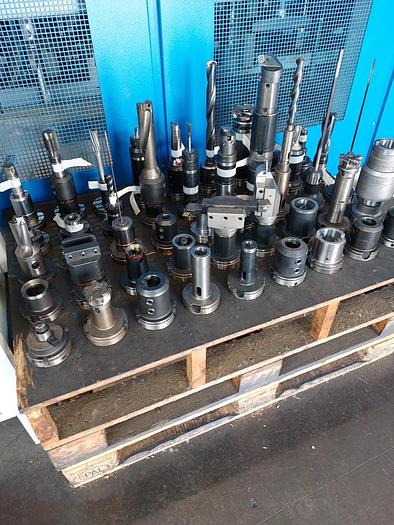

| Accessories | Tooling |
| High pressure | Yes |
| Through spindle coolant | Yes |

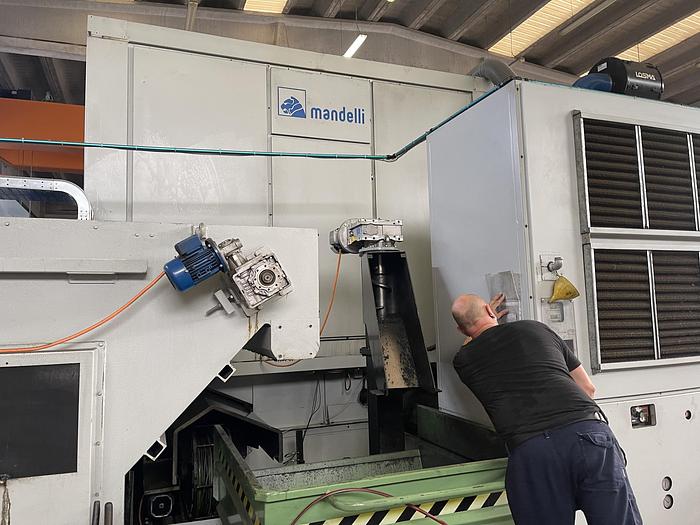

| Conveyor | Yes |
| Max turning diameter mm. | 1600 |
| Tabli turning rotation rpm | 500 |
