Cnc Floor Borer INNSE CF S WZ
Cnc Floor Borer INNSE CF S WZ
Italy
Description

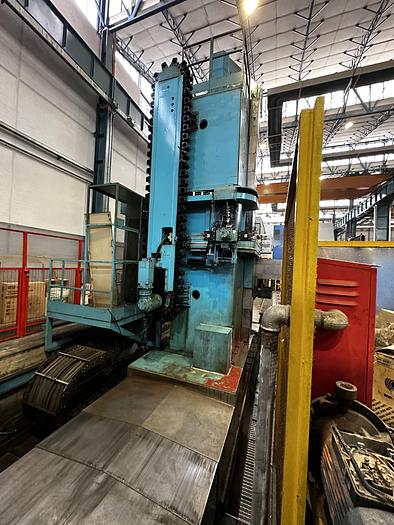

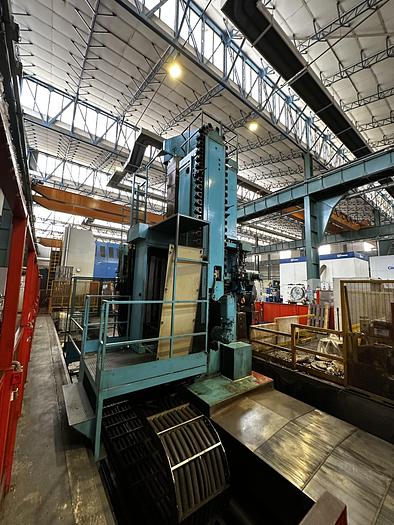

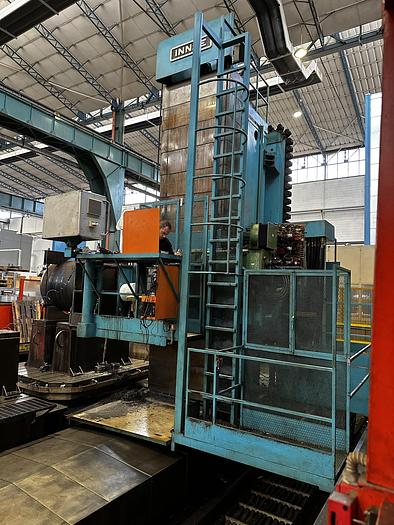

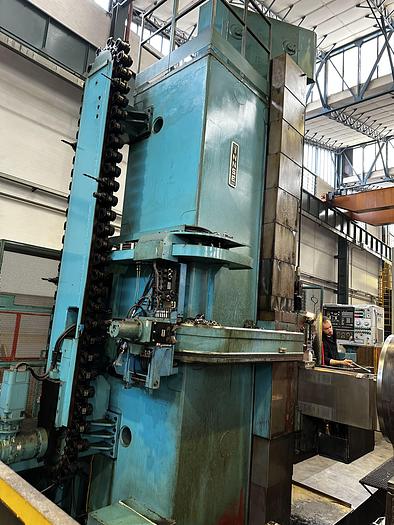

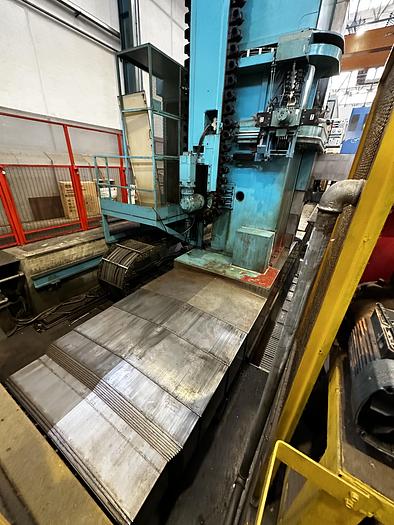

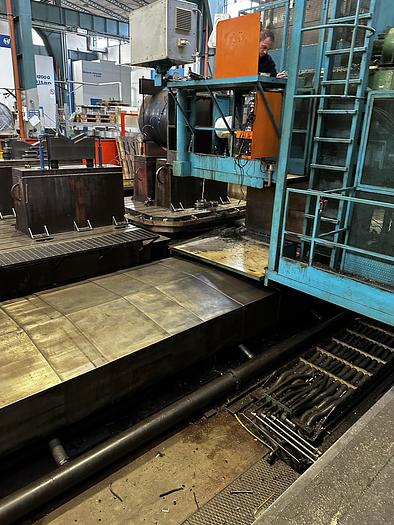

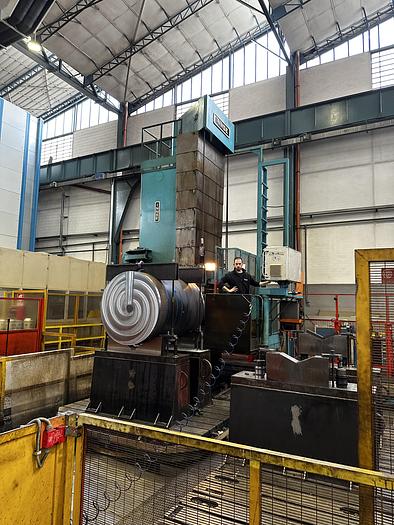

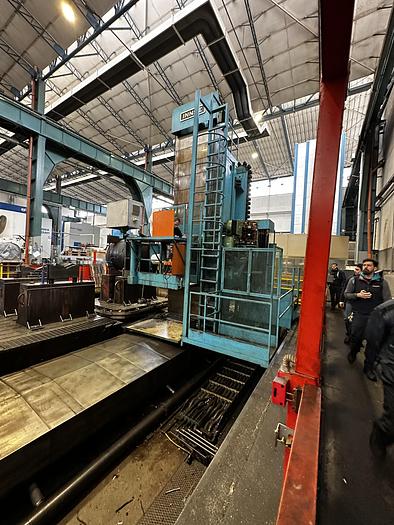

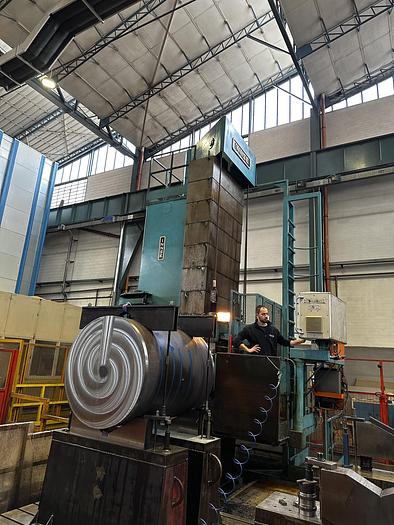

Cnc Floor Borer Mobile INNSE CF S WZ
Milling spindle dia mm.200
Boring spindle dia mm.150
Iso 50
X mm.10300
Vertical Y Head mm.3000
Cross Head W mm.1000
Boring spindle stroke Z mm.800
Max boring spindle stroke W + Z mm.1800

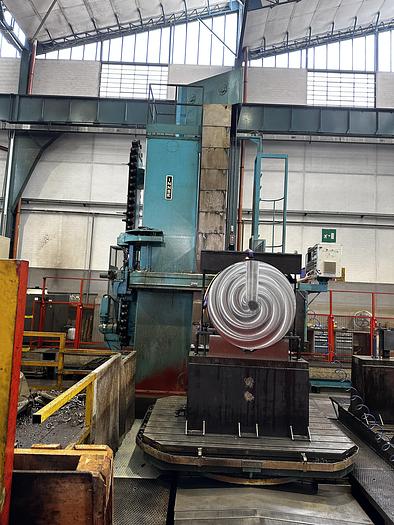

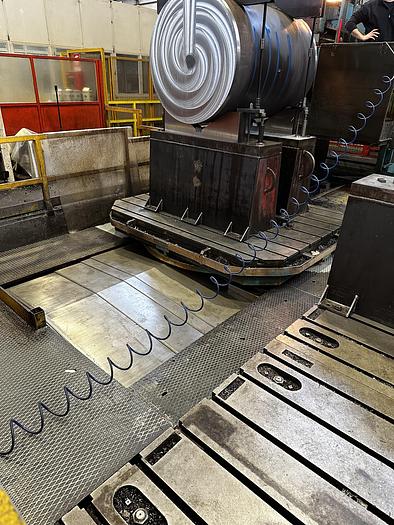

Rotay travelling table PMFC 1200 mm.2000 x 2500
Table travel mm.1500
B axis table rotation continuously variable
Table load Kg 25000
Spindle DC motor 40 Kw
Spindle speeds in 2 ranges continuously variable rpm 7 - 2170
Range 1 rpm 1 7 - 614
Range 2 rpm 25 - 2170
Spindle torque Nm 2200
Continuously variable feedrates X, Y, W, Z mm/min 0,5 - 6000
Rapids mm/min 10000
Head section 420 x 500
Tool changer 62 positions

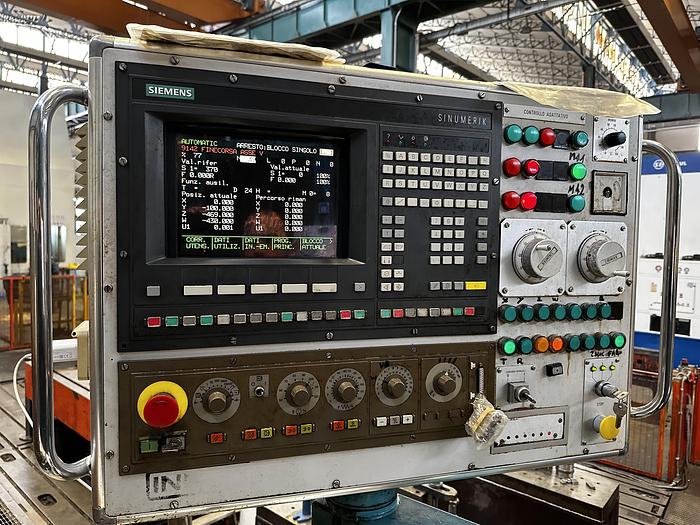

Cnc SIEMENS SINUMERIK850
Through spindle coolant
Automatic Facing Head D’ANDREA U TRONIC 5-500 D renewed

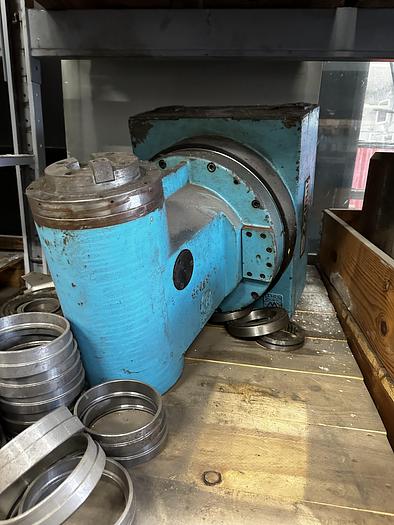

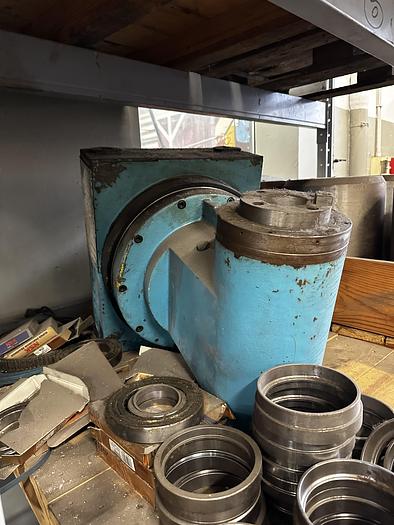

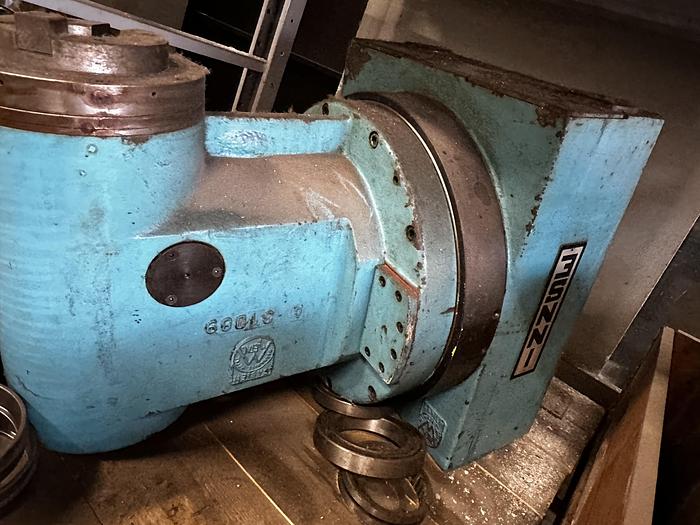

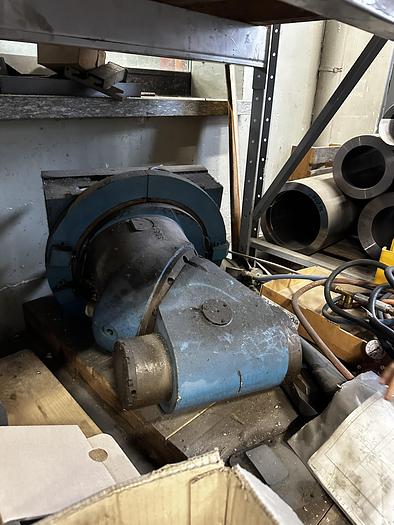

Universal Milling Head

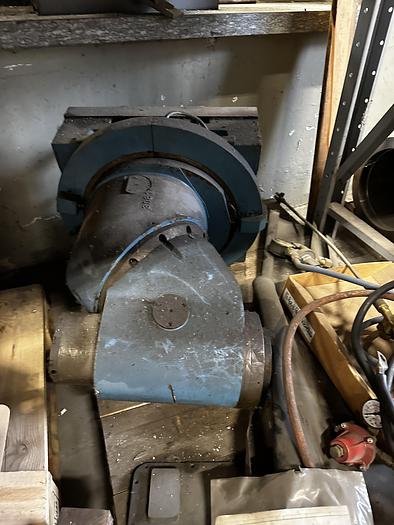

Vertical Milling Head
1988
Specifications
| Manufacturer | INNSE |
| Model | CF S WZ |
| Year | 1988 |
| Condition | Installata |
| Spindle diam.mm. | 150 |
| Stroke X mm. | 10300 |
| Stroke Y mm. | 3000 |
| Stroke Z mm. | 800 |
| Stroke W mm. | 1000 |
| Cnc | SIEMENS SINUMERIK 850 |
| Accessories | Automatic Facing Head D’ANDREA U TRONIC 5-500 D renewed Universal Milling Head Vertical Milling Head |
| Spindle rpm | 2170 |
| Tool changer positions | 62 |
| Spindle attachment | Iso 50 |
| Table mm. | Model PMFC 1200, mm.2500 x 2000 |
| Table travel mm. | 1500 |
| B axis table rotation | Continuously variable |
| Max table load Kg. | 25000 |
