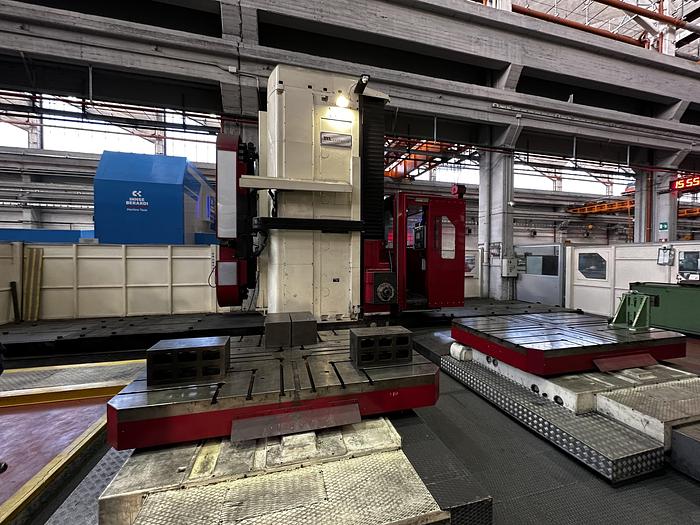

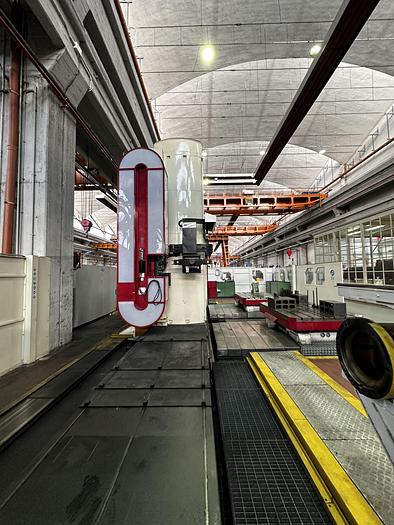

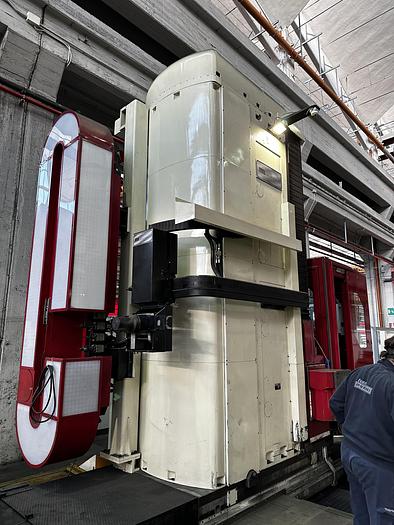

Cnc Floor Borer BERTHIEZ M 150/100 FMM 8000 CNC

Cnc Floor Borer BERTHIEZ M 150/100 FMM 8000 CNC

Boring/Drilling spindle dia 130

Milling spindle dia mm.520

X mm.8080

Y mm.2900

V1 mm.1450

V2 mm.1450

W mm.500

Z mm.700

Spindle speed 0 - 2000 rpm

Spindle power Kw 37

Nm 1800

ISO 50 DIN 69871/B

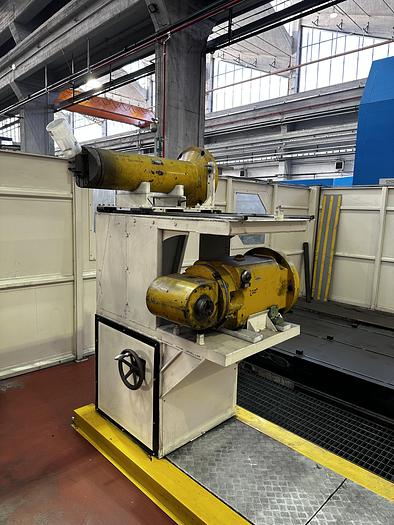

Universal Milling Head

Long Head

Vertical Head

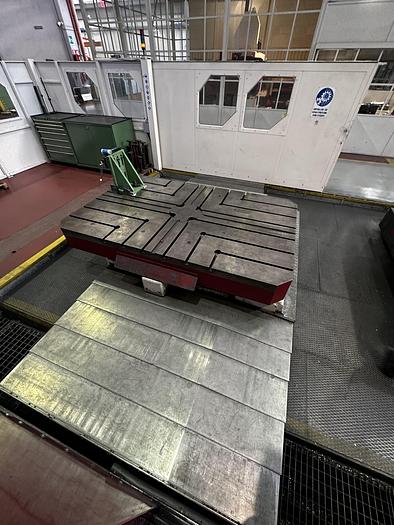

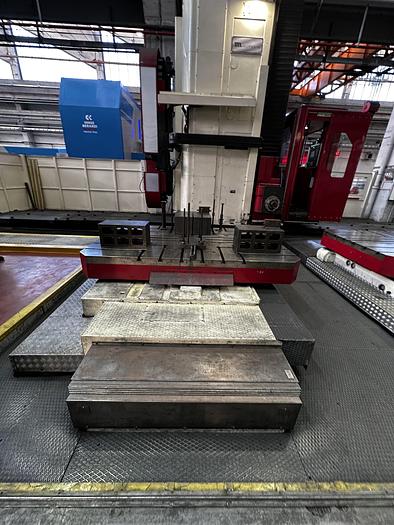

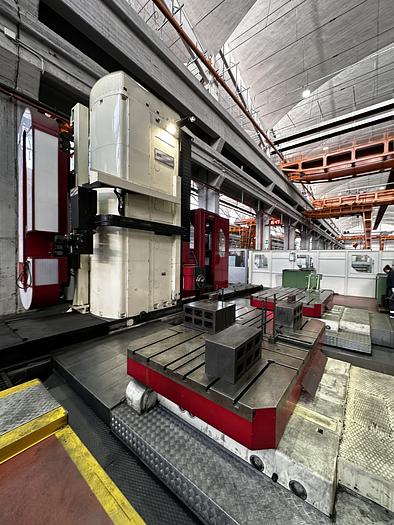

2 x Travelling Rotary Tables mm.2750 x 1750 each

Table load Kg. 60000 each

2 tables can operate separately or together as a single working surface

Workpiece dimensions mm.8000 x 2800 x 1200

Max workpiece weight Kg 60000

Tool magasin 60 positions

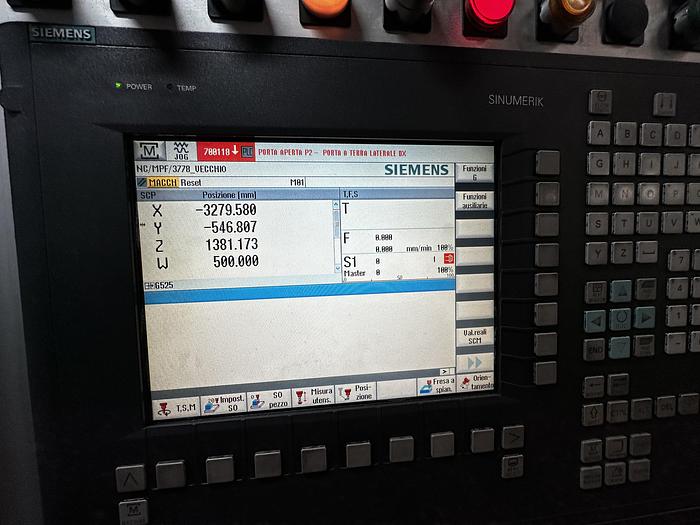

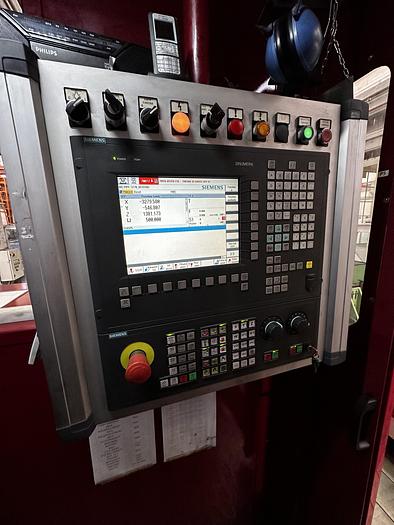

Cnc SIEMENS 840 D SL

Controlled axis 10 + Milling Spindle Indexing

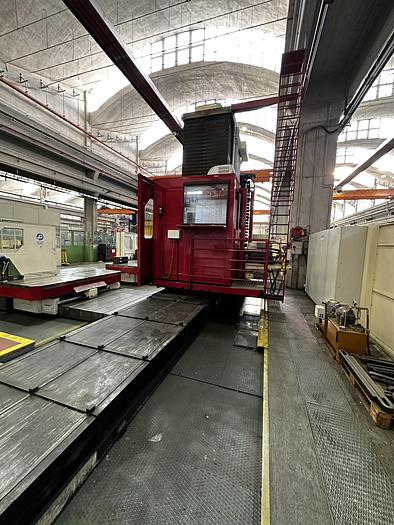

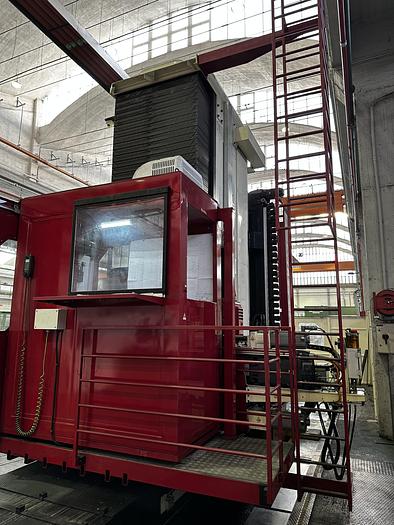

Operator cabin with climatization

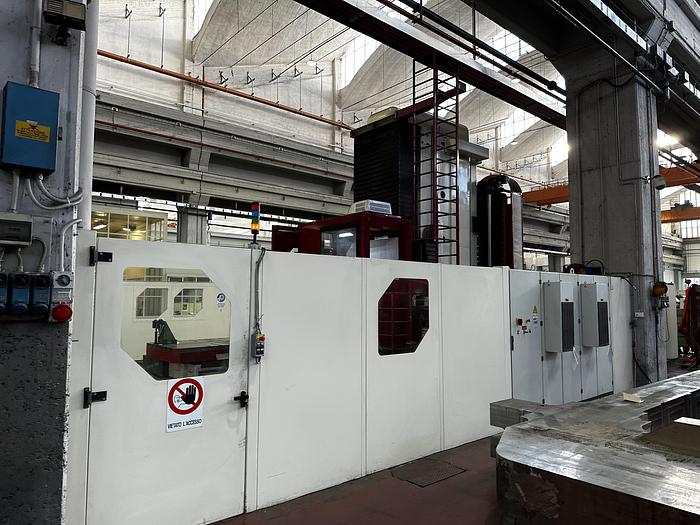

Full work area protection

Installed power Kw 200

Machine dimensions mm.14500 x 3900 x 6750

Machine overall weight Kg 70000

CE

Rebuilt in 2016
