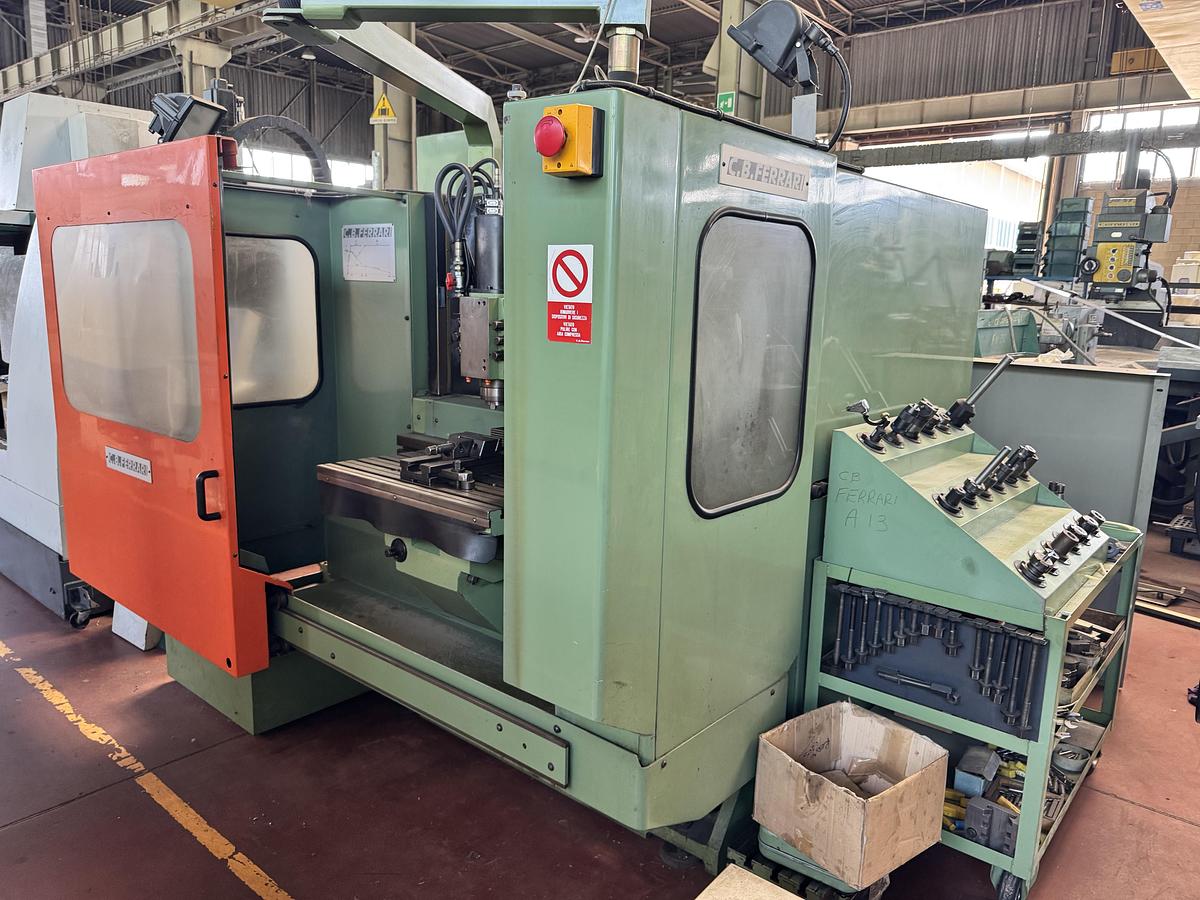

Cnc Toolroom Milling Machine CB FERRARI A13

Cnc Toolroom Milling Machine CB FERRARI A13, Cnc SELCA S1200, used machine in excellent conditions, available for immediate delivery Subject to Prior Sale.

Working Capacity and Axes

• X-Axis Travel (longitudinal): 650 mm
• Y-Axis Travel (transversal): 320 mm
• Z-Axis Travel (vertical): 320 mm
• Axis Motors: Brushless
• Rapid Feeds: Up to 15,000 mm/min
• Working Thrust: Approx. 10,000 N

Workpiece Table

• Table Dimensions: 1470 x 400 mm
• T-Slots: Number 3, width 14 mm, distance 70 mm

Spindle

• Tool Taper: ISO 40
• Rotation Speed: 10 – 4,000 rpm
• Spindle Motor Power: 6 kW (with peaks up to 10 kW in some configurations)

Tool Changer

• Standard Configuration: Manual tool change.

General Data

• Approximate Machine Weight: 3,750 - 4,100 kg
• Approximate Dimensions (L x W x H): 2,500 x 2,500 x 2,300 mm
• Notes: This is a machine highly regarded for its rigidity and precision, ideal for toolmaking, small series production, and prototyping.
